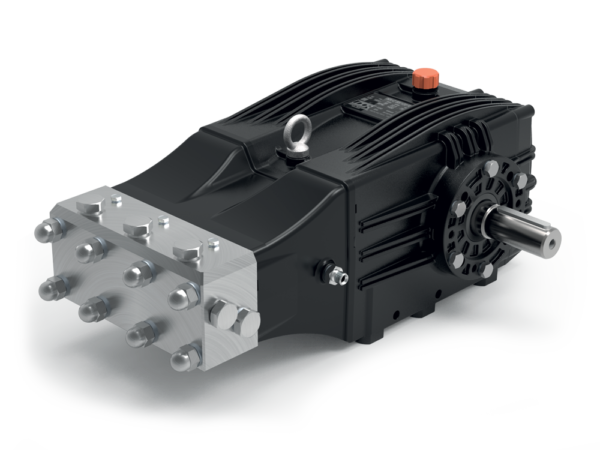

Pump Udor VY-C 19/1000 R

The Udor VY-C 19/1000 R is a top-tier, Italian-made industrial triplex plunger pump operating in the ultra-high pressure (UHP) range at 1000 Bar, offering an increased flow rate compared to its smaller siblings. It is specifically engineered for severe industrial hydro-blasting applications, including concrete hydro-demolition, heat exchanger and tube cleaning, stripping tough chemical deposits, and shipyard surface preparation. To withstand the extreme structural and mechanical stress of 1000 Bar, it is constructed with a high-grade stainless steel manifold and solid tungsten carbide plungers. The "R" designation indicates compatibility with speed reduction gearboxes or specialized shaft layouts.

Technical Specifications:

Maximum Water Flow: 19.0 liters/min (5.0 GPM)

Maximum Working Pressure: 1000 Bar (14500 PSI)

Power Requirement: Approximately 49.0 – 51.0 HP (36.5 – 38.0 kW)

Pump Speed: Designed for low-speed industrial operation (typically 1000 to 1450 RPM via a reduction gearbox) to prevent component fatigue and extend sealing life.

Weight (Bare Pump): Approximately 45.0 – 50.0 kg (99 – 110 lbs)

Shaft Type: Heavy-duty Male Solid Keyed Shaft.
