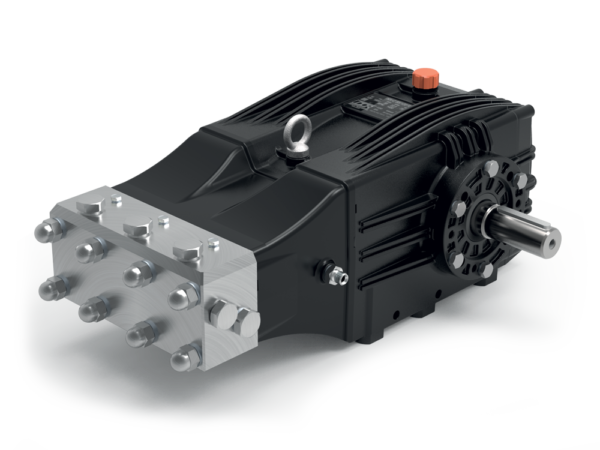

Pump Udor VY-C 15/1000 R

The Udor VY-C 15/1000 R is a top-tier, Italian-made industrial triplex plunger pump operating in the ultra-high pressure (UHP) spectrum at a staggering 1000 Bar. It is engineered exclusively for extreme industrial hydro-blasting applications, including hydro-demolition (concrete cutting), paint and scale removal from ship hulls, and the clearing of ultra-hard chemical deposits inside industrial tanks. To withstand the immense mechanical stress of 1000 Bar, it is built with a high-grade stainless steel manifold and solid tungsten carbide or specialized ceramic plungers. The "R" designation indicates compatibility with speed reduction gearboxes or specialized shaft configurations.

Technical Specifications:

Maximum Water Flow: 15.0 liters/min (4.0 GPM)

Maximum Working Pressure: 1000 Bar (14500 PSI)

Power Requirement: Approximately 39.0 – 41.0 HP (29.0 – 30.5 kW)

Pump Speed: Designed for low-speed industrial operation (typically 1000 to 1450 RPM via a reduction gearbox) to minimize component fatigue and ensure maximum safety.

Weight (Bare Pump): Approximately 45.0 – 50.0 kg (99 – 110 lbs)

Shaft Type: Heavy-duty Male Solid Keyed Shaft.
