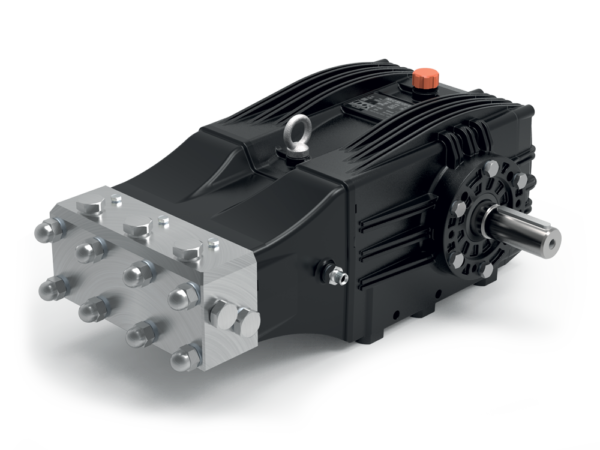

Pump Udor VY-B 25/800 R

The Udor VY-B 25/800 R is a premium, Italian-made industrial triplex plunger pump designed for ultra-high pressure (UHP) operations, delivering a high flow rate of 25 liters/minute at a powerful 800 Bar. It is engineered for highly demanding industrial hydro-blasting applications that require a significant volume of water combined with massive stripping power, such as shipyard surface preparation, hull cleaning, industrial tank and pipe descaling, and paint/rust removal. To manage the extreme structural stress, it features a high-grade stainless steel manifold and solid tungsten carbide plungers. The "R" designation indicates compatibility with speed reduction gearboxes or specialized shaft configurations.

Technical Specifications:

Maximum Water Flow: 25.0 liters/min (6.6 GPM)

Maximum Working Pressure: 800 Bar (11600 PSI)

Power Requirement: Approximately 51.0 – 53.0 HP (38.0 – 39.5 kW)

Pump Speed: Designed for low-speed industrial operation (typically 1000 to 1450 RPM via a reduction gearbox) to minimize component fatigue and extend seal life.

Weight (Bare Pump): Approximately 45.0 – 50.0 kg (99 – 110 lbs)

Shaft Type: Heavy-duty Male Solid Keyed Shaft.
