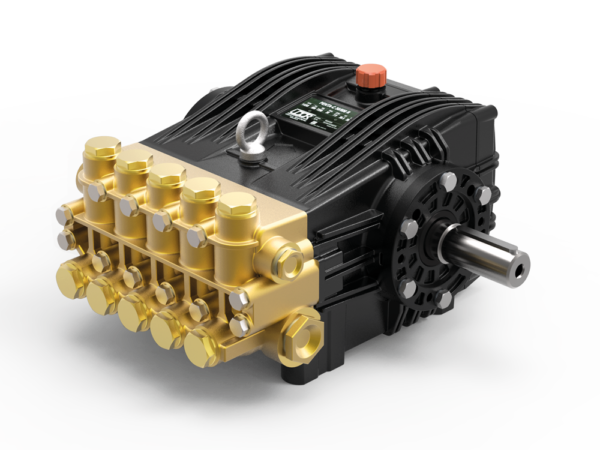

Pump Udor PENTA C 30/600 R

The Udor PENTA C 30/600 R is a top-tier, heavy-duty 5-plunger (quintuplex) ultra-high pressure pump, manufactured in Italy. The PENTA series is engineered to deliver an exceptionally smooth water flow with minimal pulsation compared to standard triplex pumps. It is built for extreme industrial applications such as industrial hydro-demolition, water-jet cutting, heat exchanger tube cleaning, and heavy surface preparation. It features a high-grade stainless steel or specialized alloy manifold and solid ceramic/carbide plungers. The "R" designation typically implies a configuration compatible with a reduction gearbox or a reversible shaft layout.

Technical Specifications:

Maximum Water Flow: 30.0 liters/min (7.9 GPM)

Maximum Working Pressure: 600 Bar (8700 PSI)

Power Requirement: Approximately 45.0 HP (33.5 kW)

Pump Speed: Designed for low-speed operation, typically paired with an internal or external speed reduction gearbox.

Weight (Bare Pump): Approximately 60.0 – 65.0 kg (132 – 143 lbs)

Shaft Type: Heavy-duty Male Solid Keyed Shaft.
