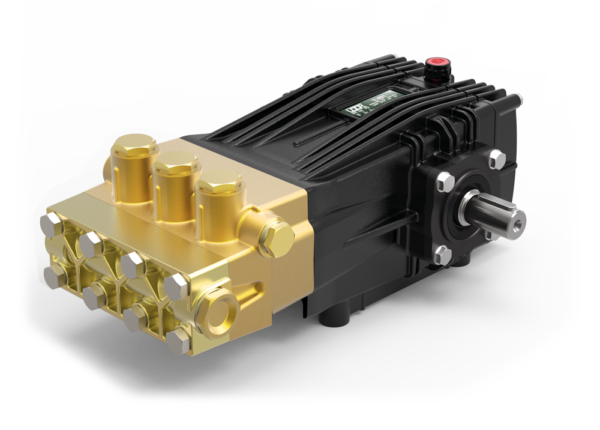

Pump Udor CXC 22/50-S

The Udor CXC 22/50-S is a premium, Italian-made industrial triplex plunger pump designed for extreme high-pressure applications. It is engineered for highly demanding tasks such as heavy-duty hydro-blasting, industrial pipe cleaning, commercial jetting, ship hull paint/rust removal, and concrete cleaning. The "S" designation indicates a solid keyed shaft layout. It features a specially reinforced forged brass manifold and 3 solid ceramic plungers, built to withstand continuous daily operation under the immense structural stress of 500 Bar.

Technical Specifications:

Maximum Water Flow: 22.0 liters/min (5.8 GPM)

Maximum Working Pressure: 500 Bar (7250 PSI)

Power Requirement: 29.5 HP (22.0 kW)

Pump Speed: 1450 RPM (Low speed - optimized for minimal mechanical wear and continuous industrial use)

Weight (Bare Pump): Approximately 20.0 kg (44 lbs)

Shaft Type: 24mm Male Solid Keyed Shaft.
