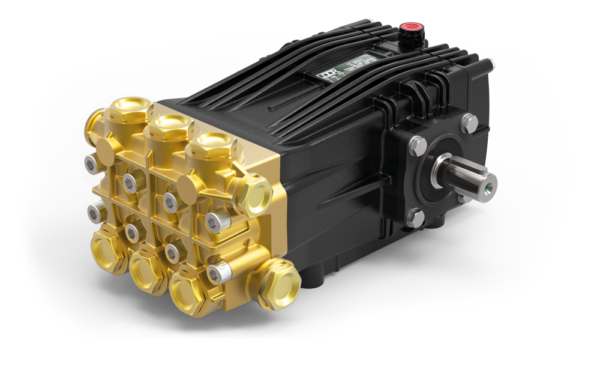

Pump Udor CKC 17/36 S

The Udor CKC 17/36 S is a heavy-duty industrial triplex plunger high-pressure pump, manufactured in Italy. It is engineered for demanding commercial cleaning, hydro-blasting, and large-scale vehicle or industrial washing applications. The "S" designation indicates a solid keyed shaft, making it ideal for direct coupling or pulley-drive configurations. It stands out for its robust build, featuring a reinforced forged brass manifold and 3 solid ceramic plungers designed for continuous, high-stress use.

Technical Specifications:

Maximum Water Flow: 17.0 liters/min (4.5 GPM)

Maximum Working Pressure: 360 Bar (5220 PSI)

Power Requirement: 17.5 HP (13.0 kW)

Pump Speed: 1450 RPM (Low speed - optimized for minimal wear, quiet operation, and extended service life)

Weight (Bare Pump): Approximately 17.7 – 18.7 kg (39 lbs)

Shaft Type: 24mm Male Solid Keyed Shaft.
