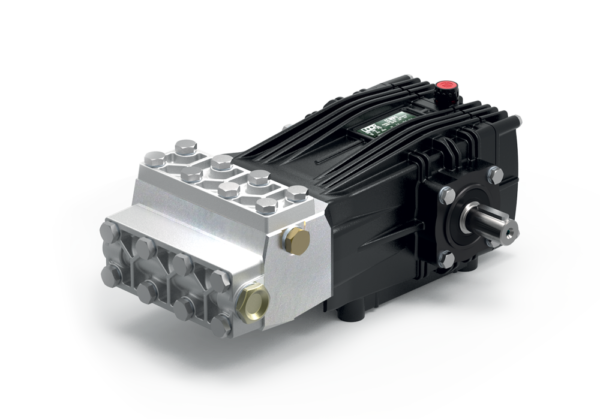

Pump Udor CHC 16/50 S

The Udor CHC 16/50 S is a premium, Italian-made industrial triplex plunger pump designed for extreme high-pressure applications. It is engineered specifically for heavy-duty hydro-blasting, industrial pipe cleaning, and surface preparation (rust and paint removal). The "S" designation indicates a solid keyed shaft. It features a specially reinforced forged brass manifold and 3 solid ceramic plungers, built to safely withstand the immense structural stress of operating continuously at 500 Bar.

Technical Specifications:

Maximum Water Flow: 16.0 liters/min (4.2 GPM)

Maximum Working Pressure: 500 Bar (7250 PSI)

Power Requirement: 20.5 HP (15.3 kW)

Pump Speed: 1450 RPM (Low speed - optimized for minimal mechanical wear and extended service life)

Weight (Bare Pump): Approximately 22.2 kg (49 lbs)

Shaft Type: 24mm Male Solid Keyed Shaft.
