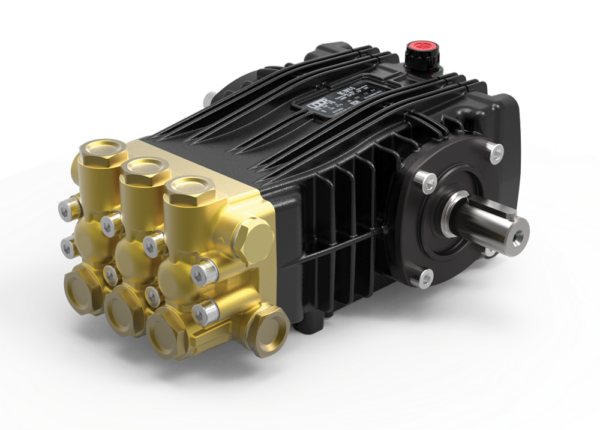

Pump Udor BKL 4.0/44-W

The Udor BKL 4.0/44-W is a professional-grade, high-pressure triplex plunger pump, manufactured in Italy. Part of Udor's BKL series, it is specifically engineered for direct-drive coupling onto industrial gasoline engines (such as the Honda GX390 or equivalent 13–16 HP engines). The "W" designation indicates a hollow shaft configuration with an SAE J609-B flange, allowing it to slide directly onto the engine's drive shaft without needing an external coupling setup. It features a robust forged brass manifold and 3 solid ceramic plungers, making it ideal for heavy-duty, portable gas-powered pressure washers.

Technical Specifications:

Maximum Water Flow: 15.1 liters/min (4.0 GPM)

Maximum Working Pressure: 300 Bar (4350 PSI)

Power Requirement: 16.0 HP Gas Engine (Approx. 14.5 HP continuous power demand)

Pump Speed: 3400 RPM (High speed - matched to gas engine operating speeds)

Weight (Bare Pump): Approximately 11.8 kg (26 lbs)

Shaft Type: 1" (25.4mm) Hollow Shaft with gas engine mounting flange.
