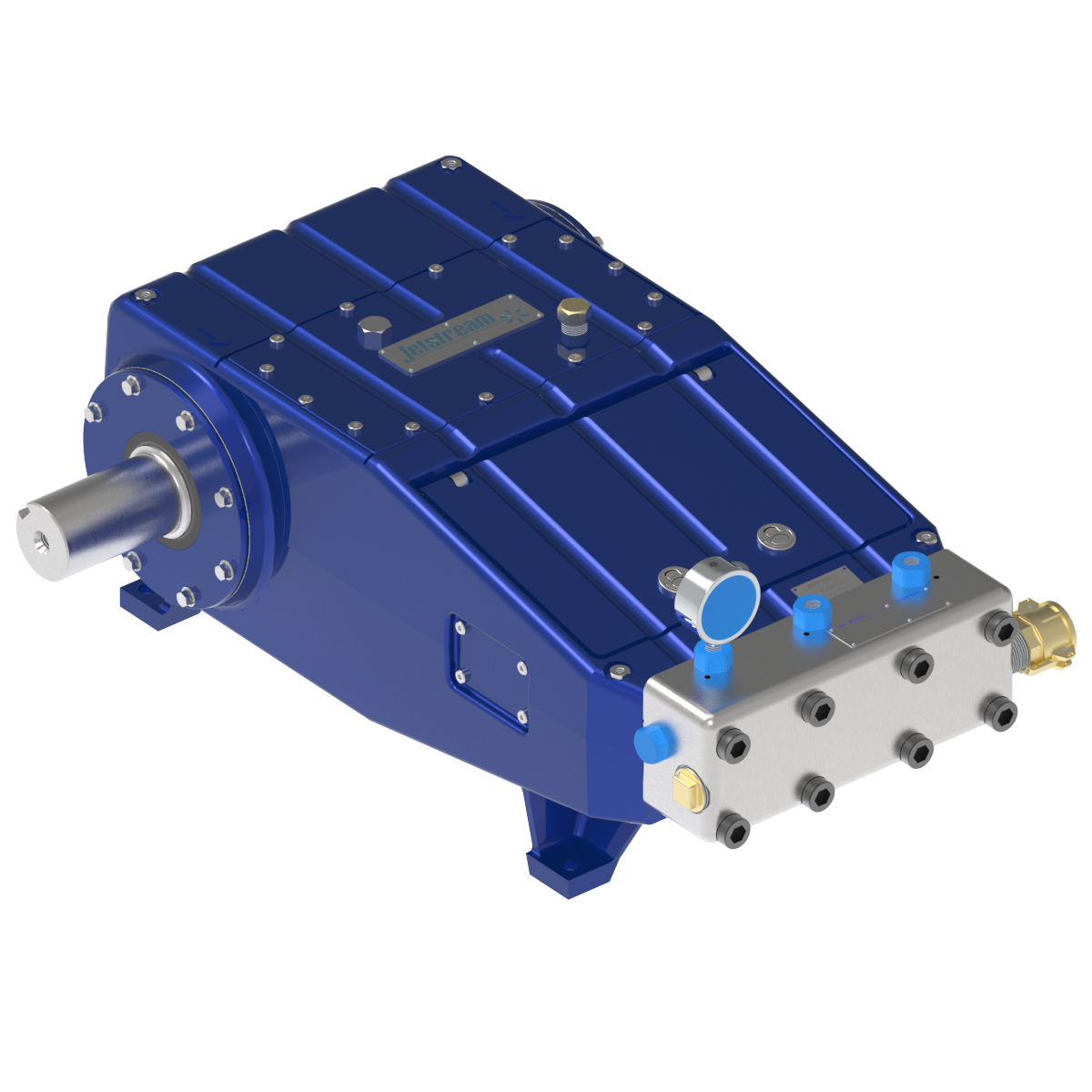

Pump Jetstream Series 4200

The Jetstream Series 4200 is a premier, American-made industrial triplex plunger pump operating in the ultra-high pressure (UHP) spectrum. Engineered for continuous, 24/7 heavy-duty operation, it is the backbone of large mobile waterblasting trailer units. It is widely used in oil refineries, shipyards for hull stripping, concrete hydro-demolition, and industrial pipe/tank cleaning.

Featuring Jetstream's signature UNX Fluid End design, the pump offers unmatched versatility, allowing users to convert the pump's operating pressure (from 15,000 to 40,000 PSI) in the field using interchangeable bolt-on cartridges. It is constructed with a premium stainless steel manifold and solid tungsten carbide plungers.

Technical Specifications (Configuration Dependent):

Operating Pressure Range: From 1,034 Bar (15,000 PSI) up to 2,758 Bar (40,000 PSI).

Water Flow Rate: Varies by pressure configuration. It can deliver 70–120 liters/min at lower pressures, and roughly 15–23 liters/min at the extreme 40,000 PSI spectrum.

Power Capability: Rated for continuous input power up to 200 HP (150 kW), typically driven by heavy-duty diesel engines (e.g., Caterpillar, Cummins).

Weight (Bare Pump): Approximately 380 – 420 kg (840 – 925 lbs) of heavy industrial cast iron and stainless steel.

Lubrication: Features a pressurized oil lubrication system with an integrated filter and cooler to ensure power-end longevity.
